Direct High Pressure Centrifugal Fan Manufactured by VIMAX-3.2D-No

Direct High Pressure Centrifugal Fan Manufactured by VIMAX-3.2D-No

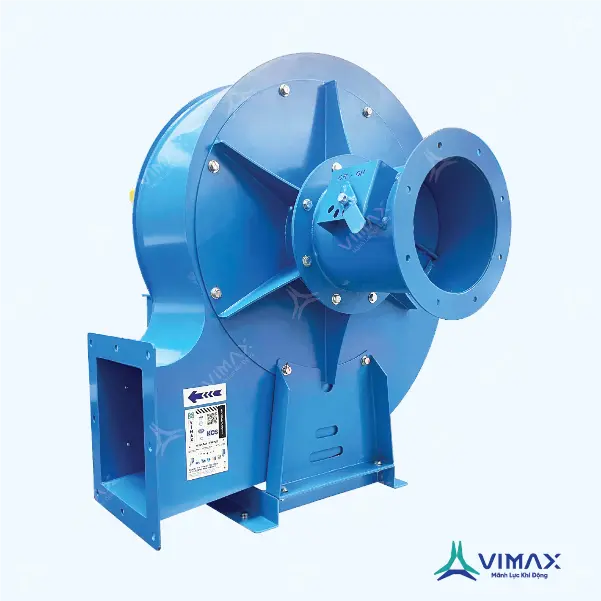

The VIMAX-3.2D-No is a direct-drive high-pressure centrifugal fan specifically engineered to generate strong static pressure in industrial ventilation and air handling systems. Featuring a robust structure, high-strength impellers, and a directly mounted motor, it operates with exceptional stability and energy efficiency, even under continuous working conditions.



COMMON APPLICATIONS

This fan is widely applied in combustion air supply systems for boilers, high-resistance industrial dust extraction, and hot or toxic gas handling in cement plants, thermal power stations, and metallurgical factories. Its strong pressure output makes it ideal for production lines requiring continuous, high-volume air movement.



SIZE

The VIMAX-3.2D-No fan is available in various sizes to suit different project needs. It offers impeller diameters from 400mm to 1200mm and inlet/outlet sizes ranging from 400x400mm to 800x800mm. Overall dimensions and weight vary by model, typically ranging from 120kg to over 900kg.



DOCUMENTATION

The VIMAX-3.2D-No is a reliable choice for systems requiring high pressure, large airflow, and continuous duty operation. Specially developed for heavy industrial use, it delivers exceptional performance through its direct-drive motor and precision-balanced impeller. High-quality materials such as CT3, SS400, or stainless steel enhance durability in harsh environments. Additionally, the fan supports optional accessories like silencers, flexible joints, and inspection hatches, making maintaining and optimizing system performance easier.

Detailed Specifications:

  • Power: 7.5kW – 110kW
  • Speed: 1450 – 2900 RPM
  • Airflow: 5,000 – 95,000 m³/h
  • Static Pressure: 1500 – 5300 Pa
  • Voltage: 380V – 50Hz
  • Noise Level: < 88 dB
  • Material: CT3, SS400, or stainless steel 304

Product Specifications

Arrangement 1 User Manual

Arrangement 4 User Manual

Arrangement 4HM User Manual

Arrangement 8 User Manual

Arrangement 9 – 9CB User Manual

Arrangement 10 User Manual

Wheel Replacement User Manual

Here is the professional English translation of your full paragraph, maintaining a technical and corporate tone:


The VIMAX-3.2D-No fan is manufactured at VIMAX GLOBAL’s modern, fully enclosed facility. From CNC cutting and MIG/TIG semi-automatic welding to precise assembly of motor, shaft, and impeller, every process is rigorously controlled under ISO 9001:2015 standards. Prior to shipment, each fan undergoes international-standard testing for noise, vibration, static pressure, airflow, and dynamic balance.

Every unit carries a unique QR code that enables full traceability of production history and technical configuration. VIMAX is committed to delivering standardized, precise, and durable products that meet the demanding needs of major industrial projects.

All products undergo rigorous quality control testing to guarantee high performance, quiet operation, and minimal maintenance. VIMAX also offers strong customer support and expert technical consultation to meet the diverse needs of clients both domestically and internationally.

For more information about VIMAX or to request customized product designs, please contact us.
