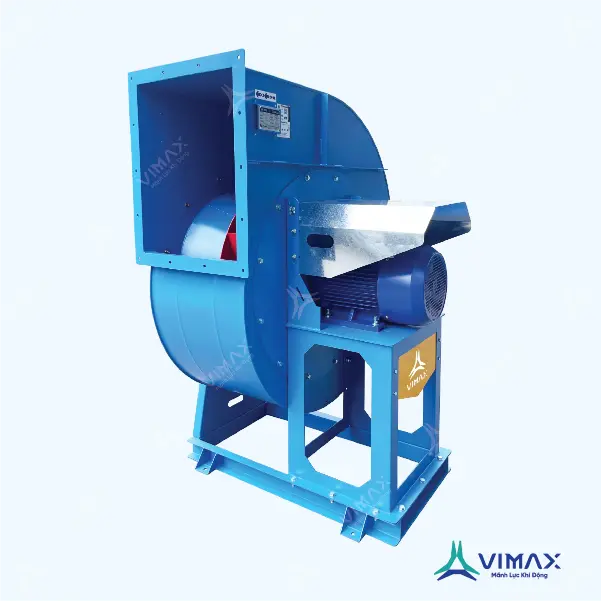

The VMC-1D-No is a direct-drive centrifugal fan designed for ventilation and exhaust systems requiring low static pressure and high airflow with minimal noise. Its compact and stable design makes it ideal for residential ventilation and light industrial applications.
COMMON APPLICATIONS
This fan is widely used in factory ventilation systems, basements, warehouses, parking garages, offices, supermarkets, and fresh air supply for wastewater treatment plants or utility rooms. Its low noise and high airflow make it suitable for areas with regular human activity.
SIZE
Impeller diameters range from 350mm – 1000mm, with round or square inlet/outlet sizes from 400x400mm to 900x900mm. Its compact housing design allows for easy installation in tight mechanical spaces.
DOCUMENTATION
The VMC-1D-No is a direct-drive low-pressure centrifugal fan optimized for basic ventilation systems requiring large airflow and low operating cost. Its simple design and compact housing allow easy installation in narrow spaces. The motor is directly coupled to the impeller, minimizing power loss and enabling smooth operation. The backward-curved, fully enclosed impeller delivers even airflow and stable pressure. The fan housing and blades are made from high-quality CT3 or stainless steel 304, offering strong mechanical resistance and corrosion protection. A variable-frequency drive (VFD) can be added to regulate speed and adapt airflow to system demand. This fan is commonly used in residential HVAC, basement ventilation, odor removal, fresh air supply, and equipment cooling.
Technical Specifications
Here is the professional English translation of your full paragraph, maintaining a technical and corporate tone:
The VMC-1D-No is manufactured at VIMAX GLOBAL’s facility using modern machining systems and experienced technicians. The fan components are CNC-cut, MIG/TIG welded, and dynamically balanced using precision balancing machines.
Each unit undergoes strict quality control, including tests for airflow, pressure, noise, vibration, and shaft alignment. Clients may request customization of rotation direction, impeller type, discharge orientation, or special corrosion-resistant coatings. Every product includes a QR code for traceability and is delivered with a technical file, CO–CQ, drawings, and an installation manual, ready for use in both residential and commercial projects.
All products undergo rigorous quality control testing to guarantee high performance, quiet operation, and minimal maintenance. VIMAX also offers strong customer support and expert technical consultation to meet the diverse needs of clients both domestically and internationally.
For more information about VIMAX or to request customized product designs, please contact us.
Shipping policies vary depending on the manufacturer, as we work with multiple partners. Freight is typically included to a standard commercial or industrial address. However, deliveries to non-standard locations may incur additional costs.
A typical delivery location is one that can accommodate a semi-trailer truck with a standard 53’ trailer and has the means to offload the equipment. Equipment is generally delivered to the tailgate of the truck. The carrier does not unload the equipment unless prior arrangements have been made. It is the receiver’s responsibility to remove the equipment from the truck. If alternative delivery arrangements are required, they can be coordinated at the time of order placement.
Terms of Sale
Payment Methods: Payment by Telegraphic Transfer (T/T) or Letter of Credit (L/C).
Price Policy: All prices are subject to change depending on market conditions and will be notified accordingly.
Sales Taxes: Unless otherwise specified, prices exclude taxes and fees. Any applicable local, state, or federal taxes will be added to the invoice and are the buyer’s responsibility.
Claims: The seller’s responsibility ends once the goods are handed over to the carrier in good condition. The buyer is responsible for filing any claims related to damage, shortages, or losses during transit with the carrier. We will assist where possible. Claims for factory shortages must be submitted within 60 days of receipt.
Acceptance or Approval: Equipment purchased subject to third-party approval (e.g., by an architect or engineer) is not guaranteed to meet specifications written for other manufacturers.
Limitation of Liability: The seller’s liability is limited to repair, replacement, or refund at their discretion. No responsibility is accepted for misuse, improper storage, or operation. No liability is assumed for incidental or consequential damages.
Dispute Resolution: All disputes will be resolved through binding arbitration under the rules of the American Arbitration Association (AAA) in Skokie, Illinois, governed by Illinois state law.
Delays: The seller is not liable for delays caused by force majeure events such as natural disasters, strikes, accidents, material shortages, or circumstances beyond control.
Credit: If the buyer’s credit is deemed insufficient, the seller reserves the right to delay shipment or cancel the order.
Penalty Clauses: Any penalty clauses are only valid if expressly approved in writing by a company officer.
The buyer shall reimburse incurred expenses if the order is canceled without fault on the seller’s part.
A 50% fee applies to non-stock replacement parts.
A 30% fee (minimum $125) applies if the order is in production or completed.
A $150 fee applies if the order has been entered but production has not started.
No fee applies if the order has not been entered into the system.
VIMAX Industrial Fans are manufactured by a leading provider of industrial ventilation solutions.
VIMAX is committed to innovation – quality – performance, specializing in the design and manufacturing of efficient, durable, and flexible airflow systems across a wide range of industries.
Every product is built to strict industrial standards, using advanced manufacturing technology and premium materials such as carbon steel, stainless steel, and aluminum for long-lasting reliability.
All products undergo rigorous quality control to ensure efficient operation, low noise levels, and minimal maintenance requirements.
VIMAX offers comprehensive customer service and technical support to meet the diverse needs of clients both domestically and internationally.
All claims related to visible or concealed damage must be reported immediately to the carrier with photo documentation. Safe delivery is the carrier’s responsibility, and the buyer is responsible for filing any necessary claims.
